Gigabyte GB-BSi7HA-6500 (Rev. 1.0) BRIX/Ultra Compact PC Kit

Overview

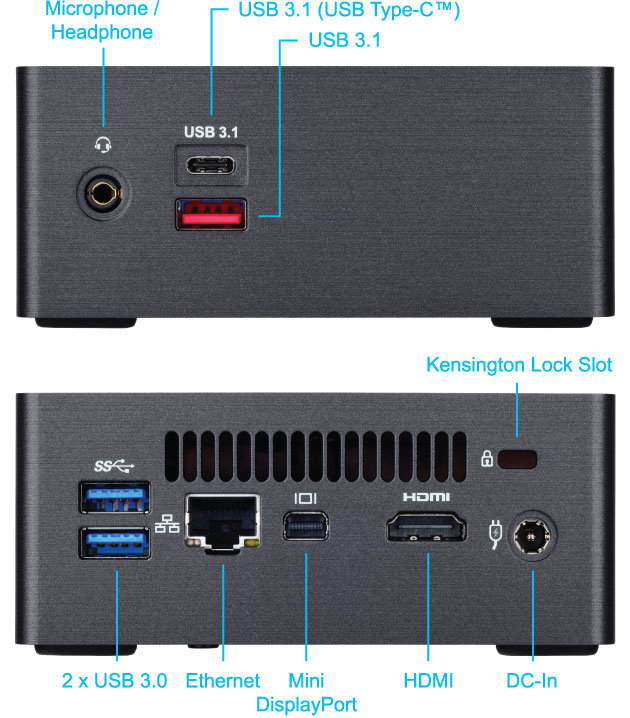

• Features Latest Intel 6th generation Core Processors
• Ultra compact PC design at only 0.6L (46.8 x 112.6 x 119.4mm)
• Supports 2.5 HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)
• 1 x M.2 SSD (2280) slot
• 2 x SO-DIMM DDR4 slot (2133 MHz)
• Intel IEEE 802.11 ac ,Dual Band Wi-Fi & Bluetooth 4.2 NGFF M.2 card
• Intel HD Graphics 520
• 2 x USB3.1 (1* USB Type-Câ„¢)
• 2 x USB 3.0
• HDMI plus Mini DisplayPort Outputs (Supports dual displays)
• Intel Gigabit lan
• Headphone/Microphone Jack
• VESA mounting Bracket (75 x 75mm + 100 x 100mm)

The Perfect Fit for Any Space

Challenging the essence of how we define a desktop PC, GIGABYTE engineers have developed an ultra compact PC with a brushed aluminum surface chassis design. Ideal for a broad range of computing applications at home or in the office, the BRIX expounds sheer simplicity and convenience. With a broad choice of processors covering the entire performance spectrum, the BRIX sets a new standard for desktop miniaturization that makes it perfect as a discreet HTPC/multimedia hub, an ultra-low power PC for the family, an office PC or as a digital signage unit.

The Perfect Compact Home PC

• Living room

• Bedroom

• Kitchen

• Study

Vertical Markets

• School

• University computer labs

• Libraries

• Hospital / Medical equipment

• Governmental

An Ultimate Graphics Powerhouse

• Play the latest 3D games

• Multimedia production

• Video editing

• 3D design

Powerful Commercial Applications

• Factory testing machine

• Bank ATM system

• Gaming equipment

• Vending machine

• Security system

At the Office

• Meeting room device

• Workstation

• Studio

• Freelance office space

Simpler and Smarter Digital Life

• Shopping mall signboard

• Split-flap display

• Scoreboard system

• Indoor / Outdoor LED Display

The Power of Intel® Core™ / Intel® 6th Gen Core™ Processors

The 6th Generation of Intel® Core i7 processors are high-end desktop processors intended for those that need uncompromised performance. They have faster clock speeds than a Core i3 or i5, in addition to more powerful integrated GPU.

Intel CPUs have a number of built-in features to ensure top of the line performance. When using processor-intensive applications, Turbo Boost 2.0 increases the clock speed while Hyper-Treading lets each core run two threads for even more efficient multitasking. Additionally, the integrated memory controller provides a direct connection between the memory and the processor for fast data processing .

Intel® HD 520 Graphics

Intel® HD 520 Graphics deliver up to 1.34x more pixel-pushing performance than the previous generation. This directly results in smoother and more responsive video playback and game play. With the Intel® HD 520 Graphics, you now have the power needed to edit HD videos and play games at ultra-high resolutions and silky-smooth frame rates.

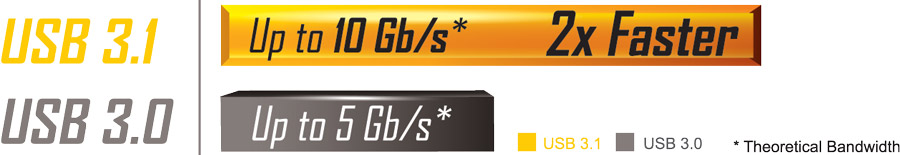

Fast USB 3.1 Solution

The latest USB 3.1 offers a staggering 10Gb/s transfer speed, 2x faster than USB 3.0 and backward compatibility with existing USB devices.

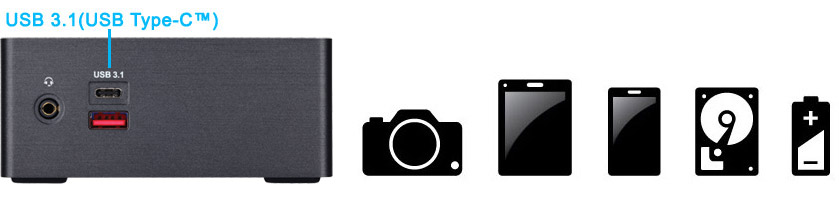

Connecting the Future - USB Type-Câ„¢: The World's Next Universal Connector

Reversible Dual USB Type-Câ„¢ with USB 3.1

The USB Type-Câ„¢ is a new reversible connector that is loaded with useful features such as USB 3.1 support for 10 Gb/s transfer speed.

USB 3.0 and Network Connectivity

GIGABYTE BRIXâ„¢ also includes a M.2 module offering IEEE 802.11ac Wi-Fi and the latest Bluetooth 4.2, providing connectivity for low power Bluetooth devices and peripherals, as well as allowing users to easily connect mobile devices.

SuperSpeed 4K HD Entertainment

Native 4K HD Decode Support

The GIGABYTE BRIXâ„¢ now support a native resolution of 4K, bringing unrivalled visual clarity and stunning realism to owners of 4K HDTV or PC monitors. This also opens up new possibilities for those in the digital signage interested in the small footprint of the GIGABYTE BRIXâ„¢, and those in need of a 4K display solution capable of delivering an ultra-realistic, high definition visual experience.

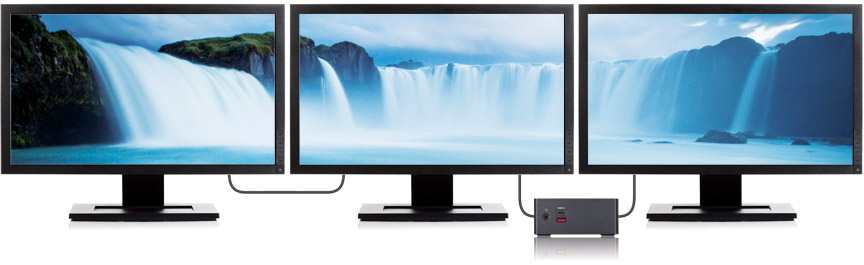

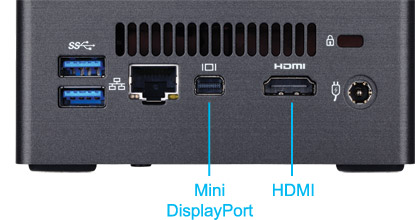

Multi-display productivity with HDMI & DisplayPort++

BRIX supports up to three independent displays through HDMI and a DisplayPort ++ without the need for an additional graphics card. Support for three display is only possible with daisy-chain connections through Display Port++.

Enjoy Always Available Responsiveness With Intel® Ready Mode Technology

Now there’s no waiting to resume activity on your PC. With Intel® Ready Mode Technology, your PC resumes to fully functional in an instant. It works by providing an alternative to traditional sleep-a quiet, low power state similar to the kind used by your cell phone and table.

With Intel® Ready Mode Technology You Can

Access Your Digital Files - From Anywhere, Anytime

Get remote access to your PC through applications on your phone and tablet to download photos, video, large files and more, no matter where you are.

Get Help From Your Digital Assistant Just by Asking

An always available PC complements Microsoft Windows® 10 enabled experiences Cortana*. When you need Cortana*, all you have to do is say "Hey Cortana," and your digital assistant is instantly at your service.

Keep Everything Up-to-Date With Automatic Syncing

Set your Intel® Ready Mode Technology - equipped PC to sync and store photos and files across devices automatically when you arrive at home or the office. And application updates? They're automatic too, which means you'll always work with the latest versions of your favorite tools.

INTEL® SMALL BUSINESS ADVANTAGE

• With 6th Generation Intel® Coreâ„¢ Processor
• Hardware-enhanced Security and Productivity Solution with built in IT
• Combination of Firmware and Software usages in one intuitive Customizable UI

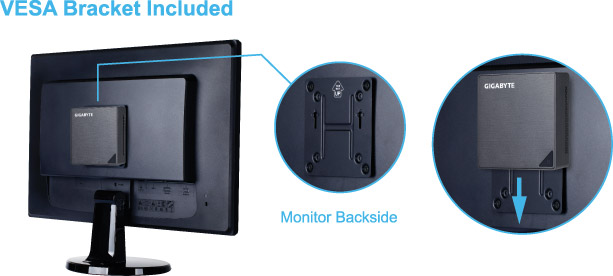

VESA Support

Bundled with a VESA bracket, the GIGABYTE BRIXâ„¢ can easily be mounted behind a monitor or HDTV, offering a simple and effective way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit.

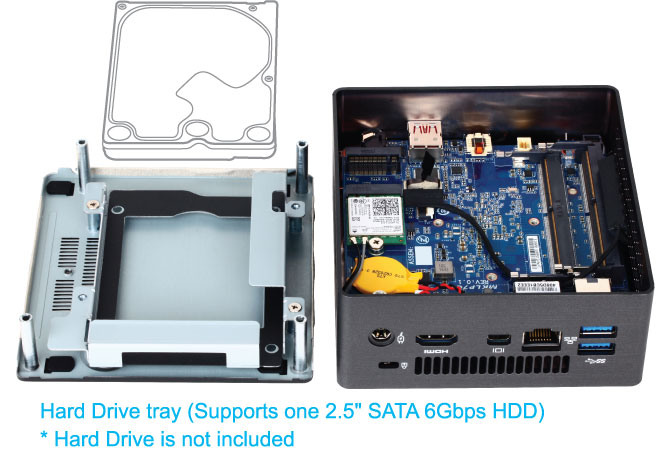

2.5" Hard Drive Support

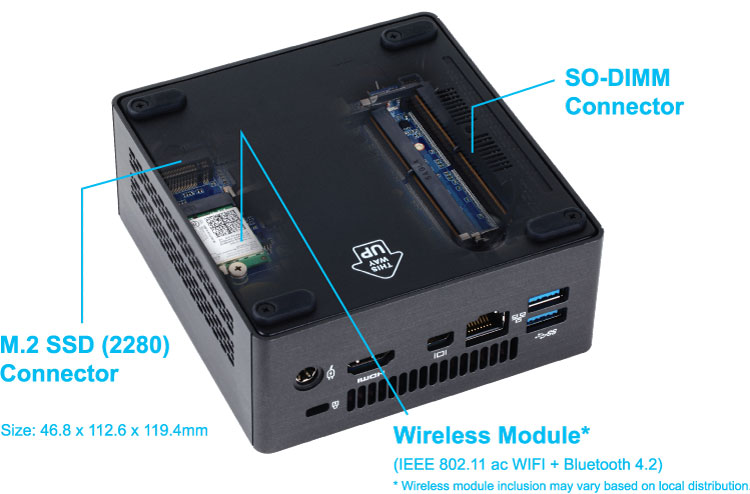

Utilizing SATA III 6 Gb/s high speed data transfer technology, the GIGABYTE BRIXs supports the installation of one 2.5 SATA 6Gbps HDD or Solid State Drive (SSD) and one M.2 2280 SSD module. This allows for optimized storage configurations which combine fast M.2 performance with larger capacity 2.5 hard drive.
*Feature may vary by model.
